Glass breaks. That single fact has made automotive glass manufacturing one of the most stubbornly difficult lines to automate, and one of the most expensive to run manually.
A 1.5-meter laminated windshield blank weighs around 20 kilograms, flexes unpredictably under load, and shatters the moment positioning goes wrong. For decades, factory managers accepted high breakage rates and repetitive strain claims as the price of doing business.
That calculation is changing fast, and the robots replacing human hands on these lines are more interesting than most coverage suggests.
Why Glass Has Always Been a Hard Problem for Automation
Pick almost any manufactured product, and you can find a robot handling it. Sheet metal, engine blocks, plastic trim, wire harnesses: all of them are mechanically forgiving compared to glass.
The material is rigid until it isn’t, and the forces that break a panel during transfer are surprisingly small.
A suction cup that seals imperfectly, a conveyor misalignment of a few millimeters, a temperature gradient across the surface of a heated blank: any of these can end a production run with a floor full of fragments and a maintenance shutdown.
Manual handlers developed a feel for the material over years. Robots had to earn that intuition through sensor integration, and the industry took its time getting there.
Early automated glass lines mostly moved panes between furnaces and bending molds on fixed roller conveyors, avoiding the tricky part: picking an unsupported sheet from a stack and placing it accurately into a downstream process.
That gap is what the current generation of articulated arms and vision-guided cobots is finally closing.
What the Modern Glass Line Actually Looks Like
Walk a contemporary windshield manufacturing cell, and the hardware is striking. Six-axis articulated robots dominate the picking and placing stations, fitted with custom end-effectors that carry arrays of vacuum cups spread across a rigid frame.
The cup layout is tuned to the specific glass geometry, and the vacuum circuit monitors pressure drop in real time, pulling the arm into a controlled stop if suction weakens mid-transfer.
Vision does the heavy lifting on positioning. A stereo camera pair above the glass stack maps each pane’s exact location before the robot moves. Stack height varies as panes are consumed, and slight lean in the remaining stack changes the pick point.
Without vision, the robot would need a perfectly loaded, perfectly aligned feed, which is rarely what operators produce under shift pressure.
With it, the system tolerates the kind of minor stacking inconsistencies that would have caused misses and breaks on earlier fixed-program arms.
Collaborative robots have started appearing at the inspection and edge-work stations. These cobots run at reduced speed beside human technicians who handle exception cases: chips, inclusions, or laminate bubbles that require judgment the vision system flags but can’t resolve.
The arrangement is genuinely collaborative rather than just marketing language, because the cobot takes the repetitive carry-and-present motion while the human focuses entirely on the evaluation.
“The fundamental driver remains the economic imperative to improve productivity, consistency, and safety in processes historically prone to high breakage rates and reliant on manual dexterity.” IndexBox, April 2026 market analysis on glass handling robot adoption trajectories.
Electric Vehicles Are Raising the Bar for Precision
The shift toward electric vehicles is making the glass problem harder, not easier. EV body structures use glass as a structural and thermal management component in ways that internal combustion vehicles rarely required.
A panoramic roof panel on a battery-electric platform must fit within tolerances tight enough to preserve the vehicle’s aerodynamic coefficient and cabin sealing, both of which affect range.
That tolerance pressure moves upstream to the factory, and it demands automation that can hold placement accuracy across an entire production shift without drift.
Global vehicle production rose from 92.7 million units in 2024 to 96.4 million in 2025, according to the International Organization of Motor Vehicle Manufacturers (OICA).
Every one of those vehicles needs multiple glass components installed with consistent quality, and the production ramp tied to EV adoption is demanding faster throughput from lines that are already running near capacity.
Robot cells, unlike manual stations, can be redeployed to new glass geometries through software and end-effector swaps rather than full-line retooling. That flexibility is becoming a competitive argument in its own right.
Robot Density and Where the Industry Actually Stands
Automotive manufacturing as a sector has always pulled ahead of the broader industry on automation adoption.
According to the World Robotics 2025 report from the International Federation of Robotics (IFR), North America reached 204 robots per 10,000 manufacturing employees in 2024, trailing Western Europe at 267 but well ahead of the global average.
Automotive glass sub-suppliers operate inside that broader automotive ecosystem, and the density pressure from OEM customers is real.
If your glass line runs slower than the assembly plant it feeds, you become a bottleneck, and OEMs have little patience for bottlenecks on a production schedule worth billions.
What that density figure doesn’t capture is how unevenly the investment is distributed. Tier-one glass manufacturers with captive OEM contracts have largely made the capital commitment to automated handling.
Smaller fabricators and aftermarket-focused shops are at an earlier stage, still weighing cycle-time gains against the upfront cost of articulated cells and vision system integration.
The payback math is improving as hardware costs fall, but it hasn’t flattened enough yet to make every glass shop an obvious candidate for full automation.
From the Factory Floor to the Final Fit
Precision on the production line matters beyond the factory gate. A windshield produced within tight dimensional tolerances installs faster, seals better, and is less likely to cause problems during ADAS camera calibration after fitting.
That quality chain matters to anyone who has ever had a replacement go wrong. When a driver in Florida books an appointment with an Auto Glass Shop after a rock strike on the highway, the glass being installed carries all the dimensional accuracy, laminate integrity, and optical clarity that a well-automated manufacturing line was built to deliver.
The automation investment at the factory level and the service quality at the installation level are connected, even if they feel like separate industries.
Better manufactured glass means fewer fit issues, fewer returns, and faster calibration for the cameras and sensors embedded in modern windshields.
The Glass Automation Readiness Framework
Before a fabricator commits capital to a glass handling robot cell, four criteria deserve honest assessment. This is the evaluation sequence that separates useful automation from expensive shelf hardware.
- Volume consistency. Robots earn their cost at volume. If your monthly glass throughput swings by more than 30 percent between your busiest and slowest periods, a fixed articulated cell will sit underutilized for weeks and struggle to justify its depreciation.
- Geometry stability. How many distinct glass shapes run through the proposed cell? A cell optimized for two windshield profiles will outperform one asked to handle twenty sunroof geometries without a serious end-effector library and changeover budget.
- Breakage cost baseline. If you don’t know your current breakage rate in dollars per shift, you can’t build a credible ROI case. Audit first, then spec the robot.
- Downstream process tolerance. An automated pick-and-place that feeds a manual laminating table is only as good as the manual step. Map the full process before isolating the robot’s contribution to cycle time.
This framework won’t tell you whether to buy, but it will tell you whether you’ve asked the right questions before signing a purchase order.

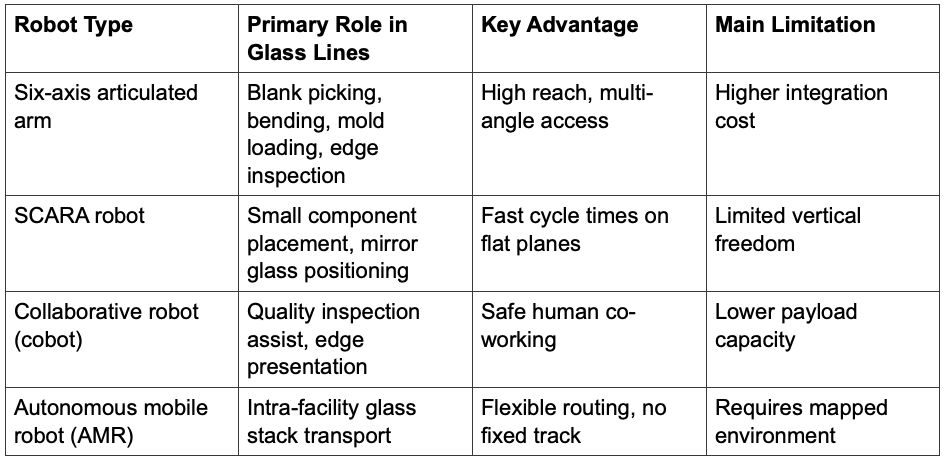

Glass Manufacturing Automation at a Glance
The glass manufacturing sector is not finished automating. The next wave involves predictive breakage models trained on sensor data from current production cells, letting the system flag at-risk panes before the break rather than after.
That shift from reactive to predictive handling is where the real efficiency gains are hiding, and the companies building toward it now will set the throughput benchmarks that everyone else chases in five years.
The question worth asking your own engineering team is simple: which step in your glass line would you be most relieved to never touch manually again?
